Overview:

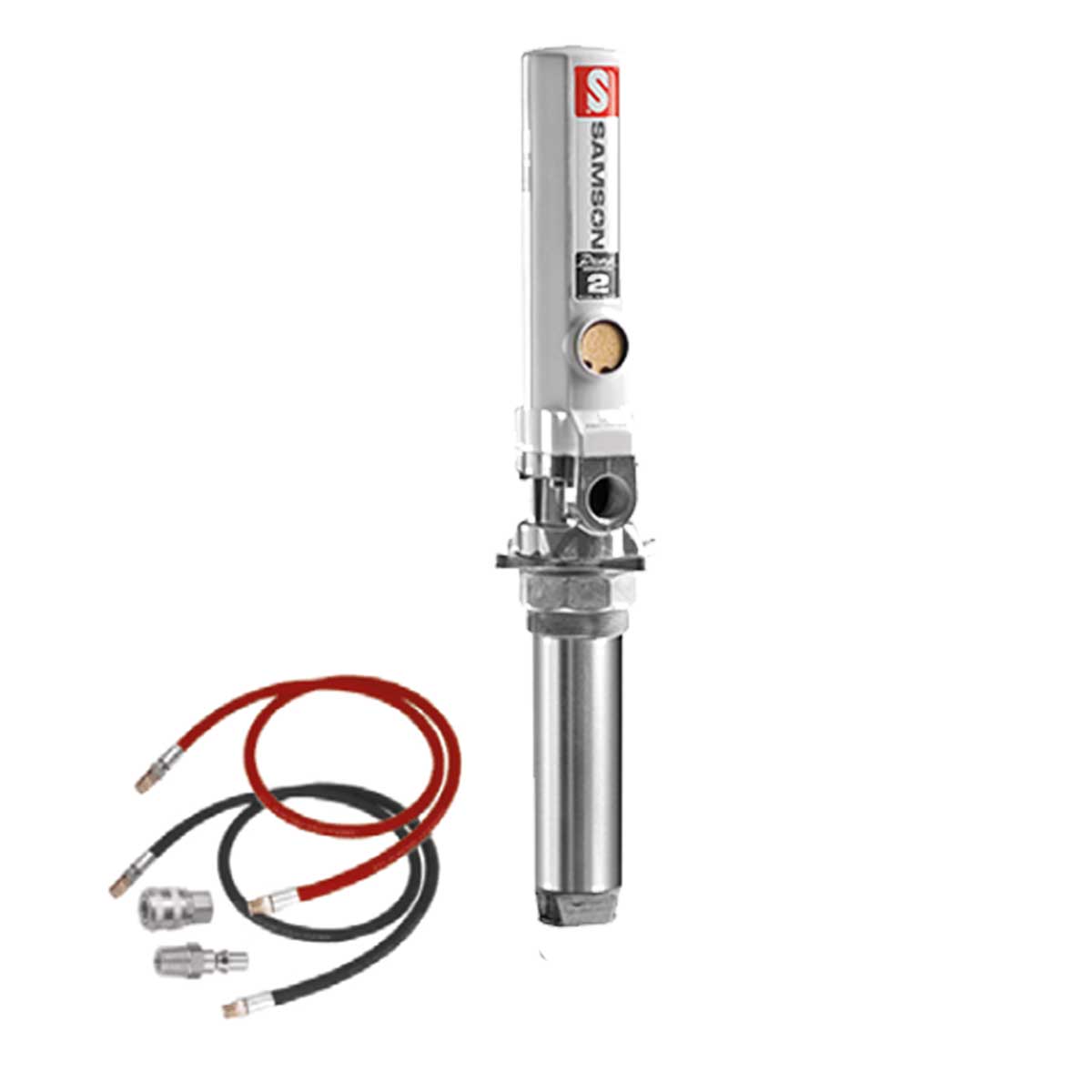

Medium Pressure Utility Pump
Double-acting air-operated medium pressure utility oil pumps for dispensing lubricants from portable units, tank packages and small systems. Pumps include a height adjustable 2” bung adaptor for tank or drum bung mounting. Built in pressure relief port for the optional, but recommended, pressure relief valve (609 007)
Reliable air motor
Unique leaf spring design. Corrosion resistant materials and fewer moving parts provide longer pump life
Metal seal carrier
Allows a compact pump design, minimizing dead air spaces and thus contributing to reduced air consumption and prolonged pump life
Long life packings
Dual packing seals provide trouble-free operation
Hardened steel foot valves
Increase durability and constant performance through the life of the pump
Spring assisted valves
Allows horizontal or vertical pump installation
Double acting pump
Provides even and smooth fluid flow
Built-in port for connecting a pressure relief valve
Positive relief of overpressure caused by thermal expansion using an optional, inexpensive, and recommended, pressure relief valve (609 007)
Adaptor included
Adaptor 2065 3/4″M x 1/2”F is included with the pump. Adaptor allows the PumpMaster 2 3:1 pump to be fitted with a standard 1/2” delivery hose
